Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Disconnect the boost pressure sensor connector (A).
Remove the boost pressure sensor after removing the mounting Bolts (B).

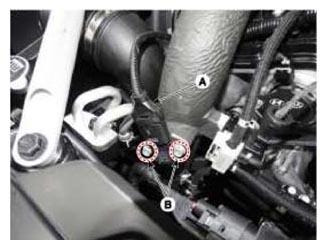

Fig 1: Boost Pressure Sensor Connector And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
