Signal Waveform

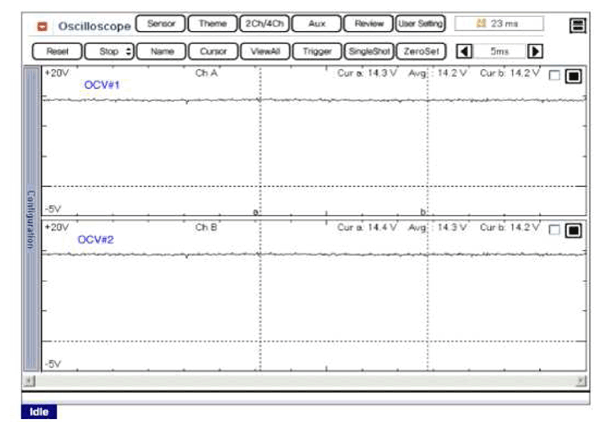

Fig 1: Screen Display - CVVT Oil Control Valve Signal Waveform
G11412217Courtesy of HYUNDAI MOTOR AMERICA

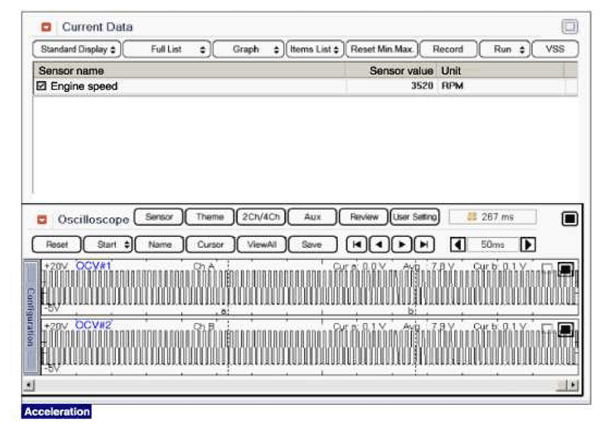

Fig 2: Screen Display - CVVT Oil Control Valve Current Data
G11412218Courtesy of HYUNDAI MOTOR AMERICA
