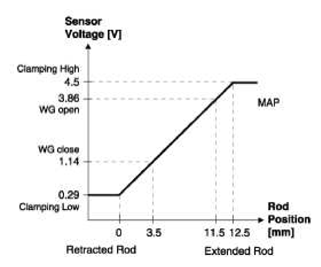

[EWAG Position Sensor]
EWAG OUTPUT VOLTAGE SPECIFICATION
| Output Voltage [V] |
Operating Angle [°] |
Range of Rod [mm], Reference |
| 1.04 - 1.24 [Setting Position] |
0 |
0 |
| 1.72 - 1.92 |
25 |
2.0 |
| 2.13 - 2.33 |
40 |
3.2 |
| 2.67 - 2.87 |
60 |
4.8 |
| 3.22 - 3.42 |
80 |
6.4 |
| 3.76 - 3.96 |
100 |
8.0 |
Courtesy of HYUNDAI MOTOR AMERICA
