Fuel Pressure Sensor (FPS): Specifications: Specification

FUEL PRESSURE SENSOR (FPS) OUTPUT VOLTAGE SPECIFICATION

Pressure (kPa)	Output Voltage (V)
50	0.3
600	2.5
1100	4.5

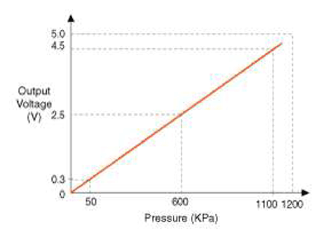

Fig 1: Fuel Pressure Sensor Voltage And Pressure Graph

Courtesy of HYUNDAI MOTOR AMERICA
