Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
CAUTION:- When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the GDS after completion of "Release Residual Pressure in Fuel Line" work.
- Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")
- Disconnect the fuel sender connector (A).

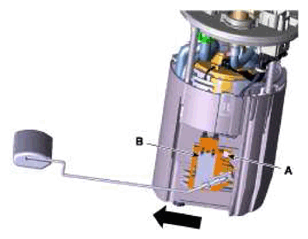

- Lift the fixing hook (A) by using a common driver, and then remove the fuel sender(B).
