Repair Procedure: Inspection: Notes

1. Remove the ignition coil.

   (Refer to "Removal ")

2. Measure the primary coil resistance between terminals.

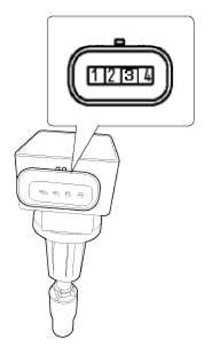

Fig 1: Primary Coil Terminals Location

Courtesy of HYUNDAI MOTOR AMERICA
