Neutralizing SMARTRA

WARNING: This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

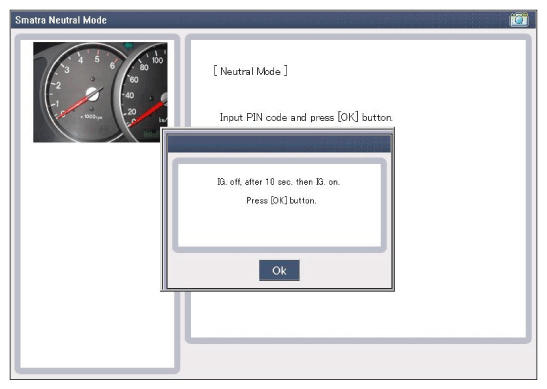

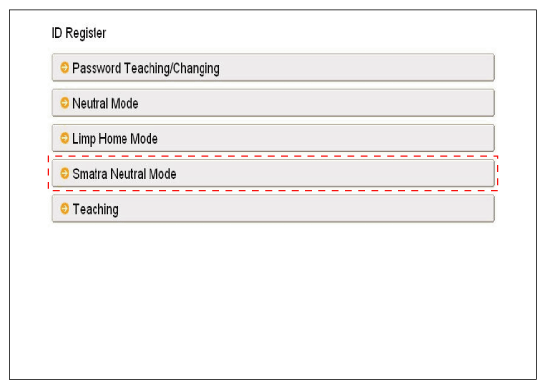

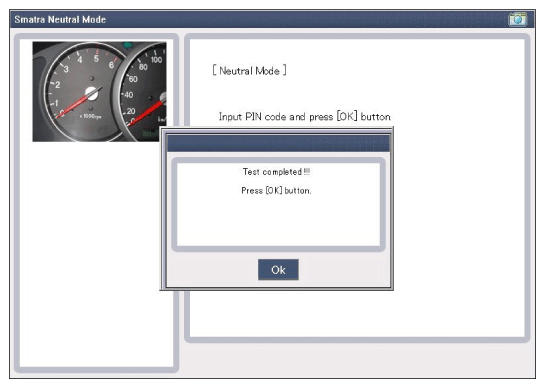

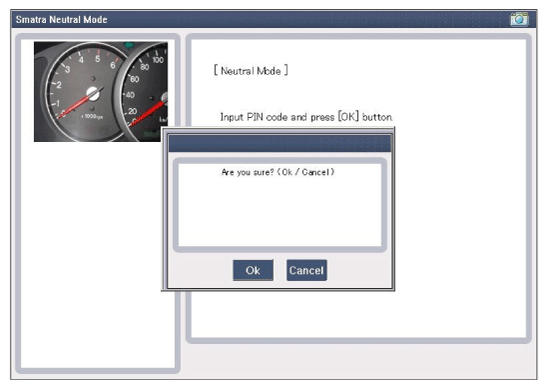

The EMS can be set to the "neutral" status by tester.

Ignition key (regardless of key status) is inserted after IGN ON. If the correct vehicle password is received from GST, SMARTRA can be neutralized.

SMARTRA can be neutralized if DPN is the same as the value inputted by GST.

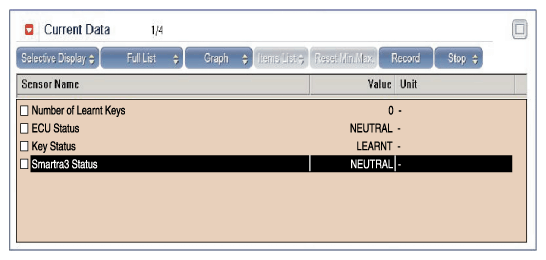

When the SMARTRA is in neutral status, the EMS stays locked. It cannot be started by performing "ignition twice".

When changing the vehicle password, new virgin transponder must only be used. And in case of virgin key, it can be used after learning the key of vehicle password.

If wrong vehicle specific data have been sent to SMARTRA three times continuously or intermittently, the SMARTRA will reject the request to enter neutral mode for one hour. Disconnecting the battery or other manipulation cannot reduce this time. After connecting the battery the timer starts again for one hour.

NOTE:

Neutralizing Setting condition:
- In case of "SMARTRA status", "Learned"

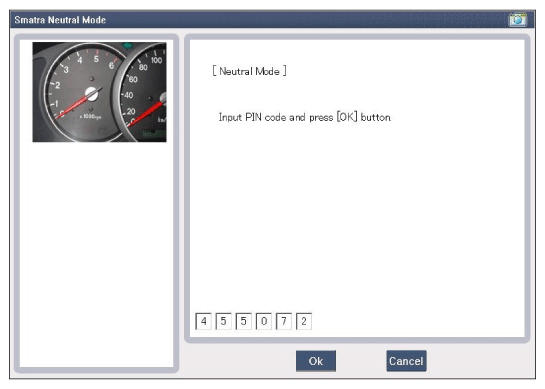

- Input correct Pin code by tester
Neutralizing meaning:
- Vehicle password (DPN Code) & SEK Code deletion.
- Permission of New DPN Learning.

Fig 1: Engine Running Continuity Reference Chart
