Chart 2

WARNING: This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

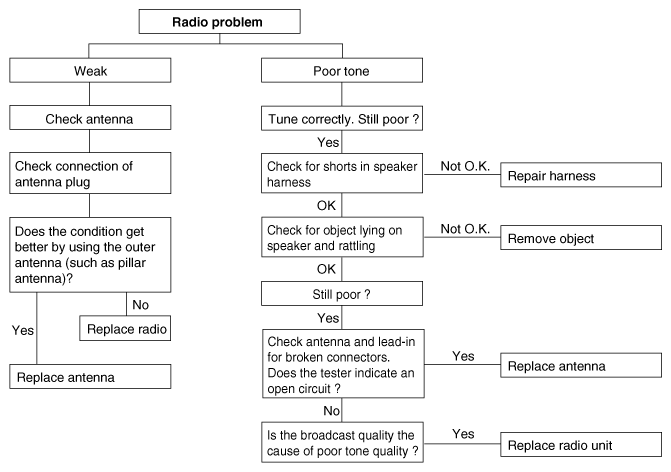

Fig 1: Troubleshooting Problem Area Chart 2 (Radio)

Courtesy of KIA MOTORS AMERICA, INC.
