Circuit Diagram

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

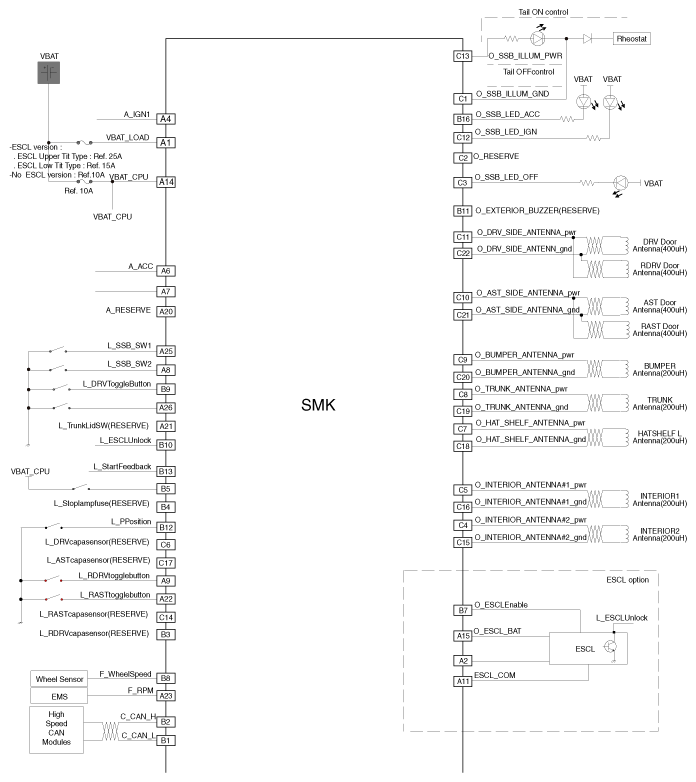

Fig 1: Smart Key Unit (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Smart Key Unit (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
