Repair Procedures: Replacement

1. Disconnect the negative (-) battery terminal.
2. Recover the refrigerant with a recovery/recycling/charging station.
3. When the engine cools down, drain the engine coolant from the radiator.

   (Refer to Engine Mechanical System - "COOLANT ")

4. Remove the cowl top cover.

   (Refer to COWL TOP COVER Body )

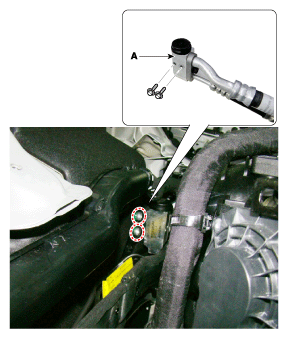

5. Remove the bolts and the expansion valve (A) from the evaporator core.

   Courtesy of

   NOTE:

   • Plug or cap the lines immediately after disconnecting them to avoid the intrusion of moisture and dust.
   • When installing, replace with a new O-ring.
6. Disconnect the inlet (A) and outlet (B) heater hoses from the heater unit.

   Courtesy of

   CAUTION:

   • Engine coolant will run out when the hoses are disconnected; drain it into a clean drip pan. Be sure not to let coolant spill on electrical parts or painted surfaces. If any coolant spills, rinse it off immediately.
7. Loosen the cowl cross member mounting bolts.

   Courtesy of

8. Remove the front seat assembly.

   (Refer to Body - "FRONT SEAT ASSEMBLY ")

9. Remove the main crash pad.

   (Refer to Body - " "MAIN CRASH PAD ASSEMBLY )

10. Disconnect the steering column connectors.

    (Refer to Steering System - "Steering Column and Shaft ")

11. Pull down the steering column after loosening the mounting bolts and through bolts.

    (Refer to Steering System - "Steering Column and Shaft ")

12. Remove the shift lever assembly.

    (Refer to Automatic Transaxle System - "SHIFT LEVER ")

13. Disconnect the airbag control module (SRSCM) connector (A).

    Courtesy of

14. Disconnect the junction box connectors (A).

    Courtesy of

15. Disconnect the multi box connectors (A).

    [Driver's side]

    Courtesy of

    [Passenger's side]

    Courtesy of

16. Disconnect the connectors (A) and the mounting clips in the front pillar.

    [Driver's side]

    Courtesy of

    [Passenger's side]

    Courtesy of

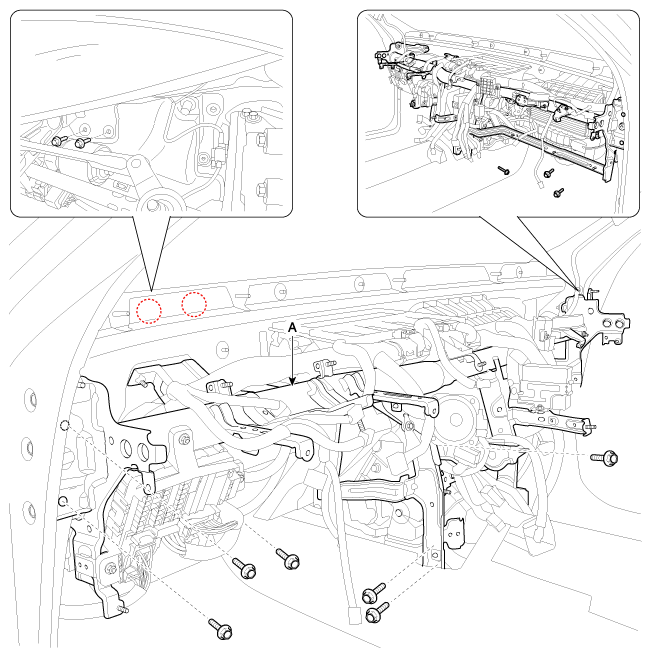

17. After loosening the bolts, remove the main crash pad and cowl cross bar assembly (A) together.

    Courtesy of

18. Separate the blower unit (A) from the heater unit (B) after loosening the screws.

    Courtesy of

    Courtesy of

    Courtesy of

19. After loosening the screws, remove the heater core cover (A).

    Courtesy of

20. Pull out the heater core (A) from the heater unit.

    Courtesy of

21. Loosen the heater lower case mounting screws.

    Courtesy of

    Courtesy of

    Courtesy of

    Courtesy of

22. Remove the lower case (A).

    Courtesy of

23. Pull out the evaporator core (A) from the heater unit.

    Courtesy of

    CAUTION:

    • Be careful that the inlet and outlet pipe are not bent during evaporator core removal/installation.
24. Install in the reverse order of removal.

Information

• If you"re installing a new evaporator core, add compressor oil (PAG OIL).
• Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-1234yf to avoid leakage.
• Immediately after using the oil, replace the cap on the container, and seal it to avoid moisture absorption.
• Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
• Apply sealant to the grommets.
• Make sure that there is no air leakage.
• Charge the system and test its performance.
• Do not interchange the inlet and outlet heater hoses and tighten the hose clamps firmly.
• Refill the cooling system with engine coolant.
