Components and Components Location: Components

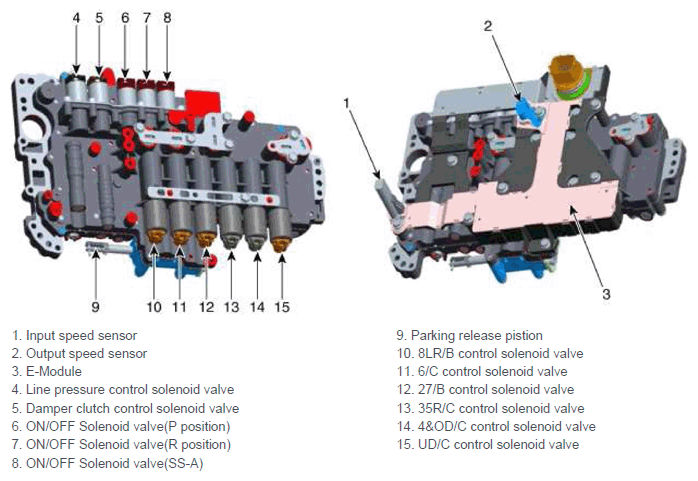

Fig 1: Locating Valve Body Components
G11404577Courtesy of HYUNDAI MOTOR AMERICA
