Automatic Transmission Control System
›
Components and Components Location
›
Components Location
›
Components Location of the Automatic Transmission
Components Location of the Automatic Transmission

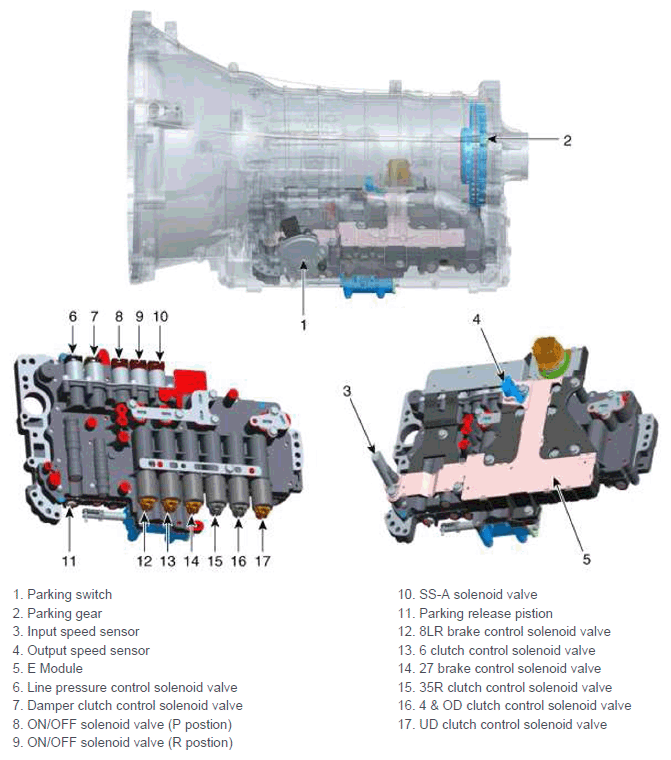

Fig 1: Locating Automatic Transmission Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
