Home › Genesis › 2017 › G90 5.0 Ultimate, AWD › Repair and Diagnosis (Single Page) › Accessories & Equipment › Collision/Avoidance › Back View Camera › Camera Interface Unit (CIU) › Components And Components Location › Components

Components And Components Location: Components

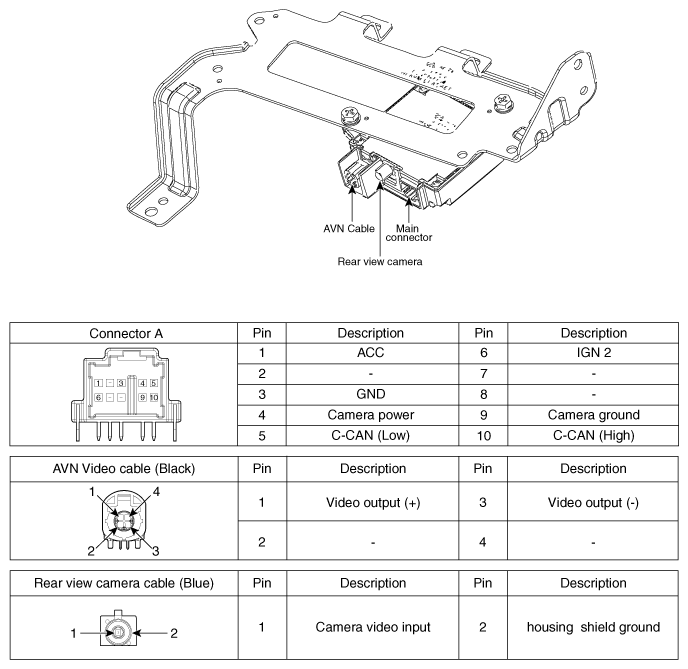

Fig 1: Camera Interface Unit Connector Terminals
G11419848Courtesy of HYUNDAI MOTOR AMERICA
