Components and Components Location: Components

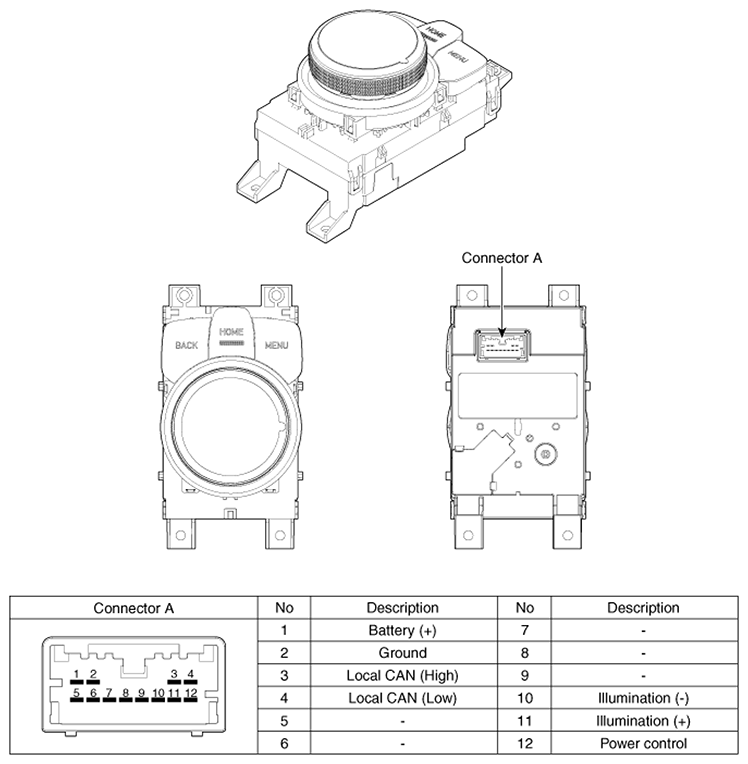

Fig 1: Locating Front Integrated Controller Connector
G11405987Courtesy of HYUNDAI MOTOR AMERICA
