Home › Genesis › 2017 › G90 5.0 Ultimate, AWD › Repair and Diagnosis (Single Page) › Brakes › Traction Control › Electronic Stability Control (ESC) System › ESC Control Unit › Components & Components Location › Components

Components & Components Location: Components

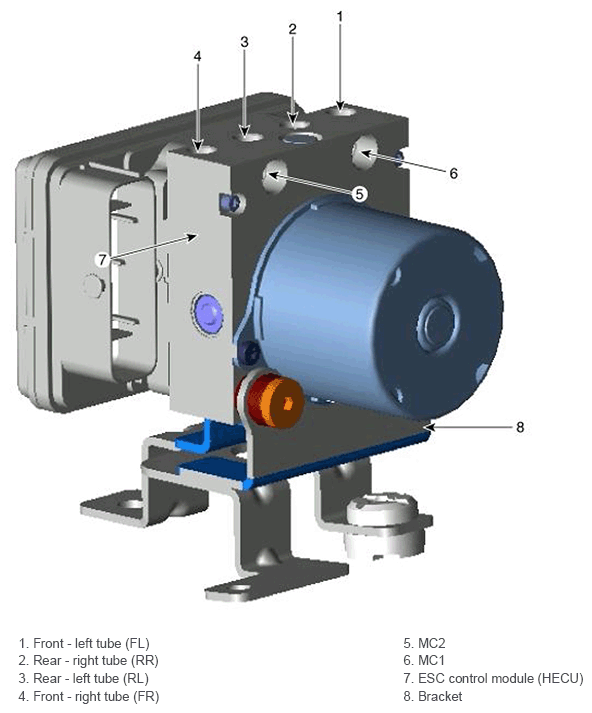

Fig 1: Locating ESC Control Unit Components
G11405146Courtesy of HYUNDAI MOTOR AMERICA
