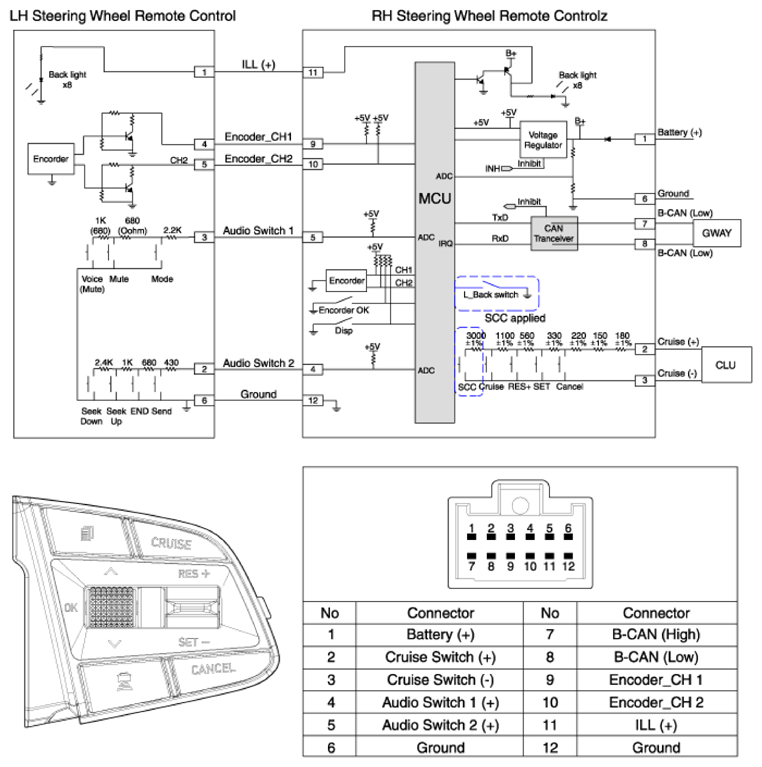

Home › Genesis › 2017 › G90 5.0 Ultimate, AWD › Repair and Diagnosis › Accessories & Equipment › Cruise Control Systems › Smart Cruise Control System › Smart Cruise Control Switch › Schematic Diagrams › Circuit Diagram
