Repair Procedures: Installation

Install in the reverse order of removal.
CAUTION:
- When installing the sensor, align the direction of sensor with the vehicle motion vector and adjust the upside of sensor horizontally using level meter (A).

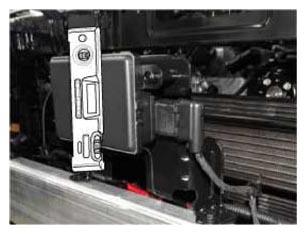

Fig 1: Installing Sensor With Vehicle Motion
Courtesy of HYUNDAI MOTOR AMERICA

Align the smart cruise control sensor.
(Refer to "SMART CRUISE CONTROL SENSOR ALIGNMENT ")
Install the bumper cover.
(Refer to Body - "FRONT BUMPER COVER ")
