Repair Procedures: Removal
CAUTION:
Take care not to scratch the crash pad and related parts.
- Disconnect the negative (-) battery terminal.
- Remove the crash pad side garnish assembly.
(Refer to Body - "CRASH PAD ")
CAUTION:- When removing with the screwdriver or remover, wrap the protective tape on the tools.
- Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.
- Remove the cluster fascia panel.
(Refer to Body - "CLUSTER FASCIA PANEL ")

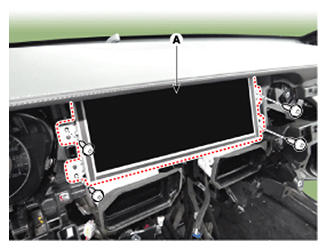

- Remove the front LED monitor after loosening the mounting screws.
