Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

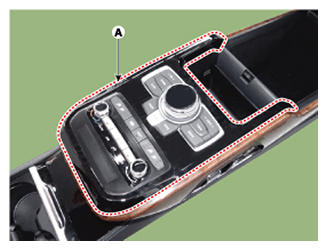

Disengage the rear seat armrest upper cover (A).

Fig 1: Locating Rear Seat Armrest Upper Cover
Courtesy of HYUNDAI MOTOR AMERICA

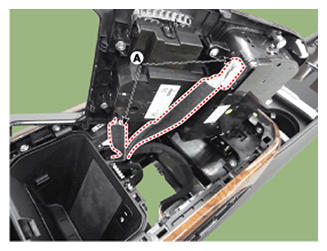

Remove the rear seat armrest upper cover after disconnecting the switch connectors (A).

Fig 2: Locating Switch Connectors
Courtesy of HYUNDAI MOTOR AMERICA

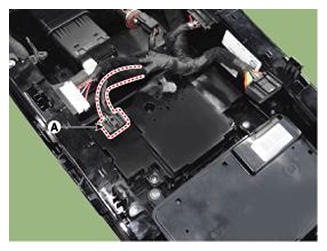

Disconnect the rear integrated controller connector (A) from the armrest upper cover.

Fig 3: Locating Rear Integrated Controller Connector
Courtesy of HYUNDAI MOTOR AMERICA

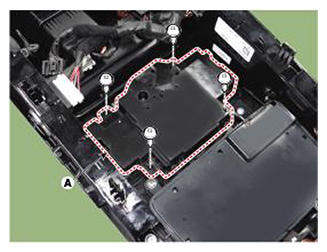

Remove the rear integrated controller (A) after loosening the mounting screws.

Fig 4: Removing Rear Integrated Controller With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
