Home › Genesis › 2017 › G90 5.0 Ultimate, AWD › Repair and Diagnosis › Body & Frame › Door Locks › Power Trunk Module › Power Trunk Inner Switch › Components and Components Location › Component

Components and Components Location: Component

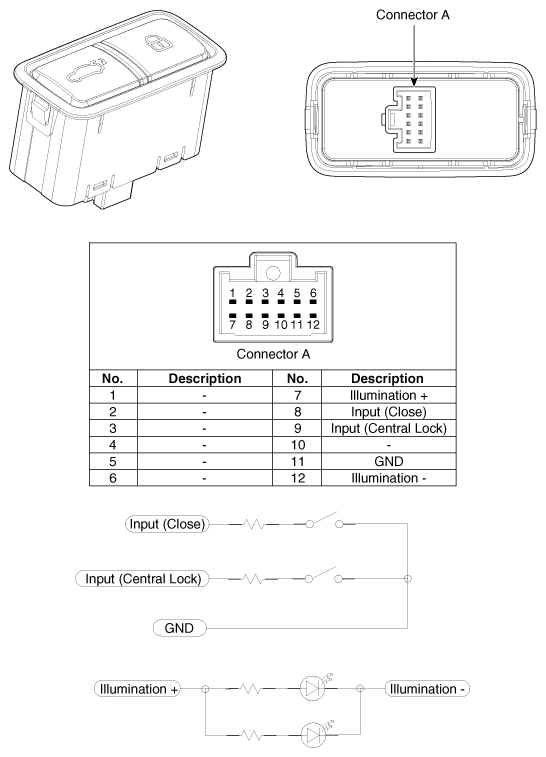

Fig 1: Locating Power Trunk Inner Switch Connector
G11419658Courtesy of HYUNDAI MOTOR AMERICA
