Components and Components Location: Component

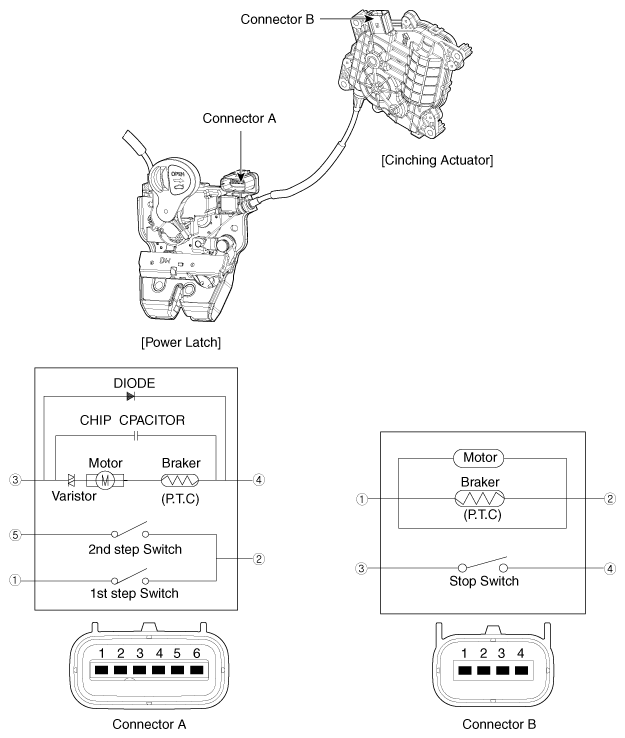

Fig 1: Locating Power Latch Assembly Connector
G11419649Courtesy of HYUNDAI MOTOR AMERICA
