Components and Components Location: Components

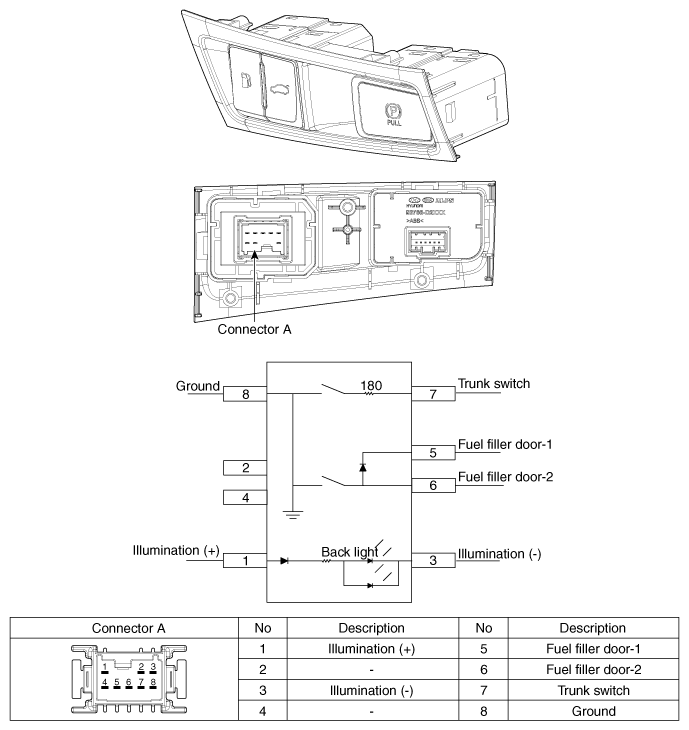

Fig 1: Locating Power Trunk Open/Close Switch Connector
G11419662Courtesy of HYUNDAI MOTOR AMERICA
