Components and Components Location: Components

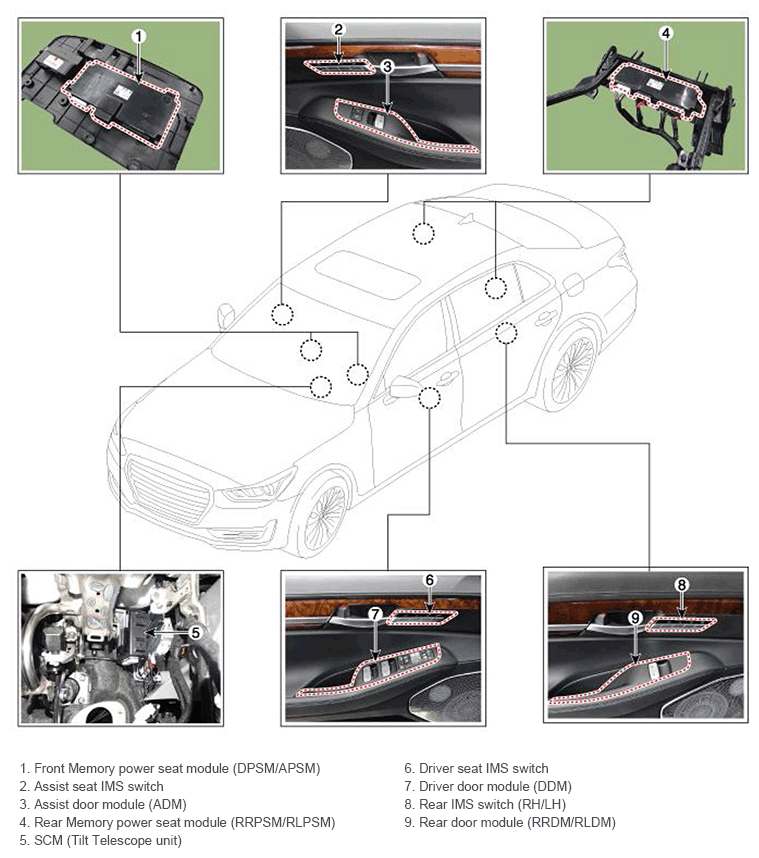

Fig 1: Integrated Memory System Components Location
G11406114Courtesy of HYUNDAI MOTOR AMERICA
