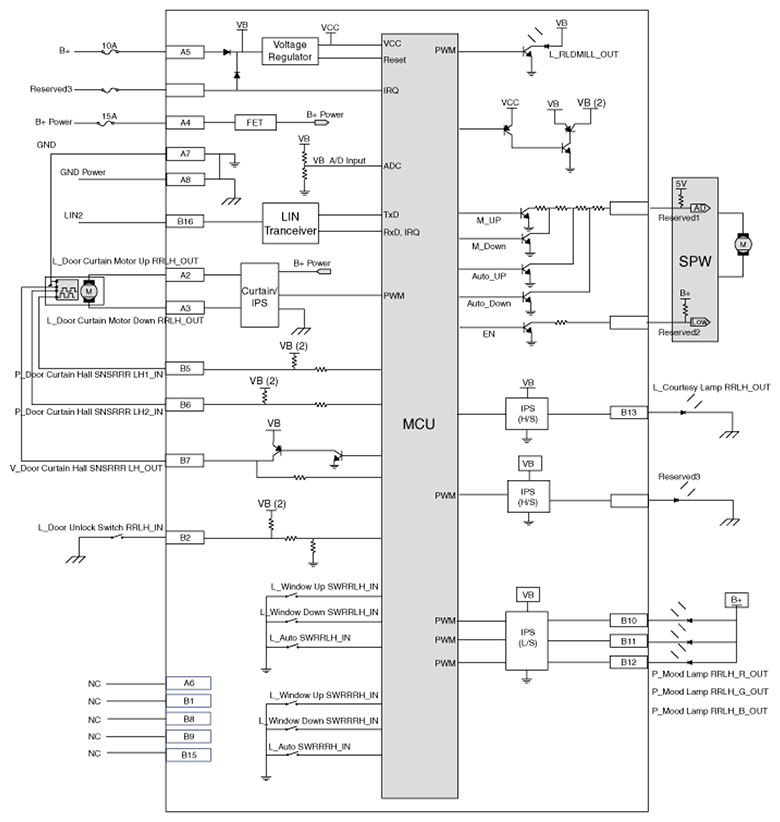

Home › Genesis › 2017 › G90 5.0 Ultimate, AWD › Repair and Diagnosis › Body & Frame › Windows › Power Windows › Power Window Switch › Schematic Diagrams › Circuit Diagram › Rear Door Module (RRDM/RLDM)
