Repair Procedures: Removal

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

Use seat covers to avoid damaging any surfaces.

Remove the rear package tray trim.
(Refer to Interior Trim - "PACKAGE TRAY TRIM ")
After loosening the mounting clips, remove the rear window glass side cover (A).

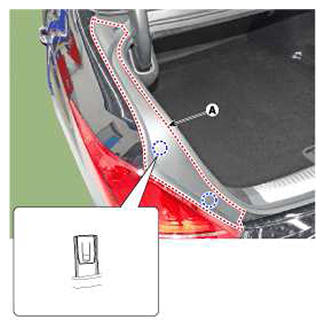

Fig 1: Locating Rear Window Glass Side Cover
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the rear window glass lower cover (A).

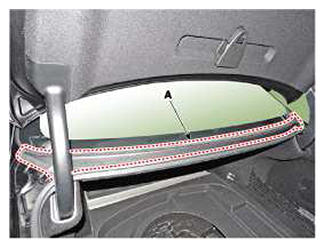

Fig 2: Locating Rear Window Glass Lower Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear curtain.
(Refer to Body Electrical System - "REAR CURTAIN ")
Spread WD-40 on the outer edges of rear window glass.
Cut out the adhesive using the cutter (A).
Information
- Use the cutter with a 20 to 30 cm-long blade.

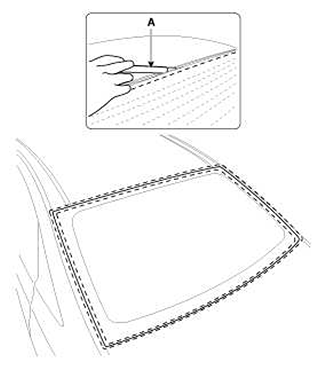

Fig 3: Cutting Adhesive Using Cutter
Courtesy of HYUNDAI MOTOR AMERICA
Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.

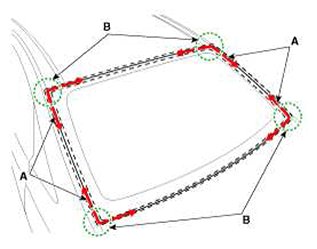

Fig 4: Locating Sealant On Edge Of Glass
Courtesy of HYUNDAI MOTOR AMERICA
Put in a piano wire (A) through the corner of the windshield glass and insert wire grips into both ends of the wire.

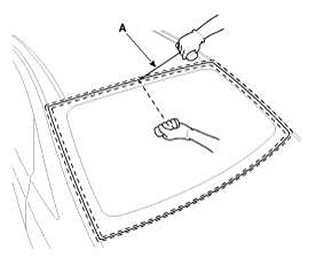

Fig 5: Inserting Piano Wire Through Corner Of Windshield Glass
Courtesy of HYUNDAI MOTOR AMERICA
Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.

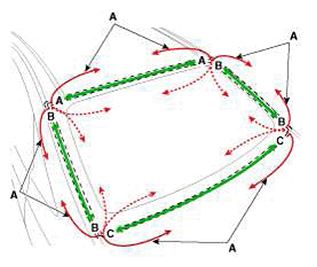

Fig 6: Locating Sealant On Glass Edge
Courtesy of HYUNDAI MOTOR AMERICA
Carefully remove the rear window glass (A).

NOTE:

When removing and installing the rear window glass, an assistant is necessary.

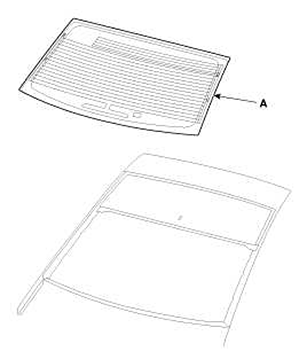

Fig 7: Locating Rear Window Glass

Courtesy of HYUNDAI MOTOR AMERICA
