Components Location: [2WD]

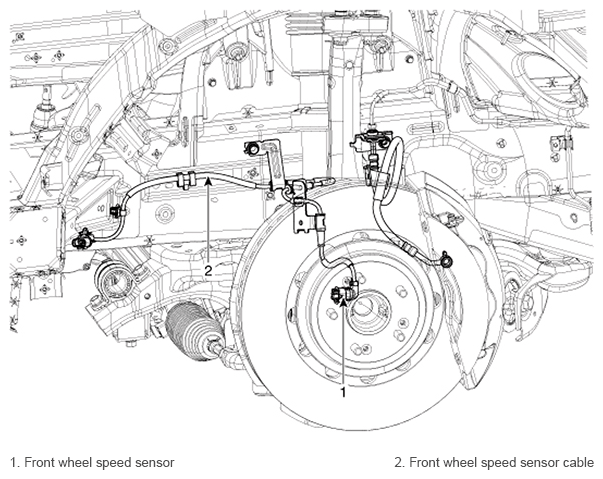

Fig 1: Locating Front Wheel Speed Sensor Component (2WD)
G11405165Courtesy of HYUNDAI MOTOR AMERICA

[AWD]

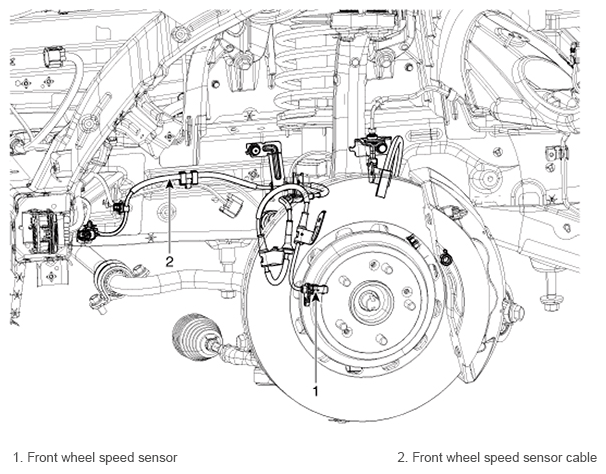

Fig 2: Locating Front Wheel Speed Sensor Component (AWD)
G11405166Courtesy of HYUNDAI MOTOR AMERICA
