SAS Calibration

Connect the GDS to the data link connector located underneath the dash panel.
Make a selection and operate the process according to the instructions on the GDS screen.

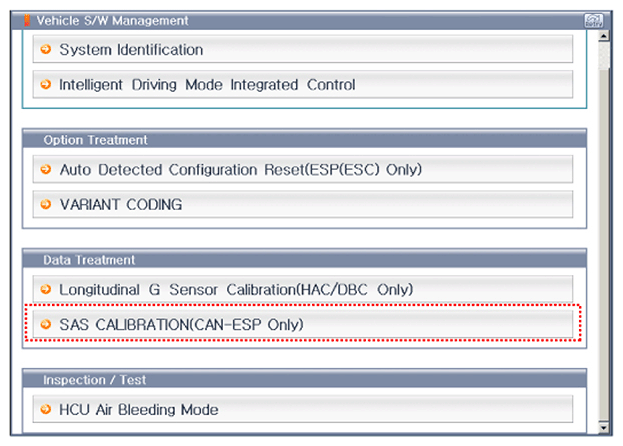

Fig 1: Screen Display - SAS Calibration (1 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

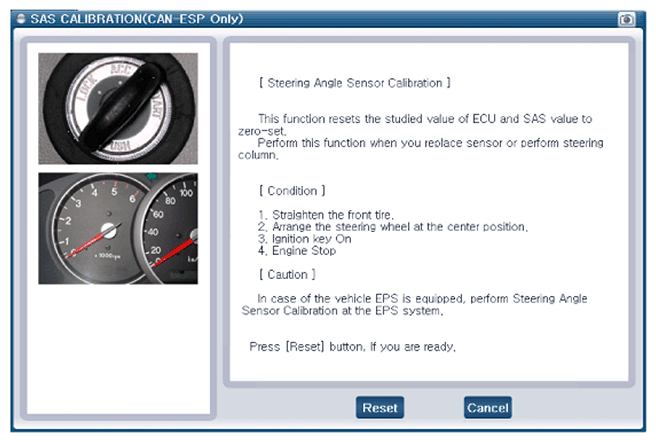

Fig 2: Screen Display - SAS Calibration (2 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

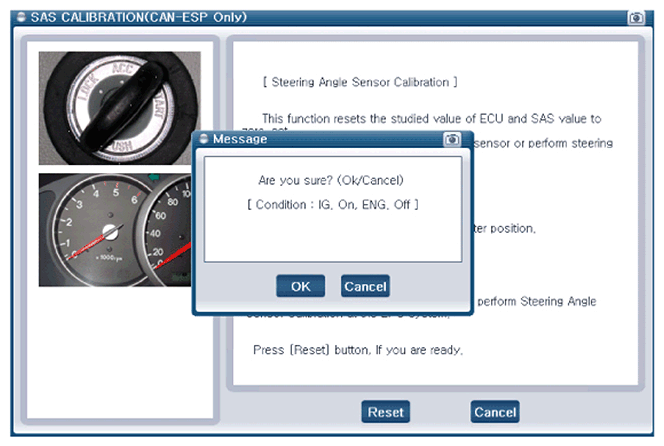

Fig 3: Screen Display - SAS Calibration (3 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

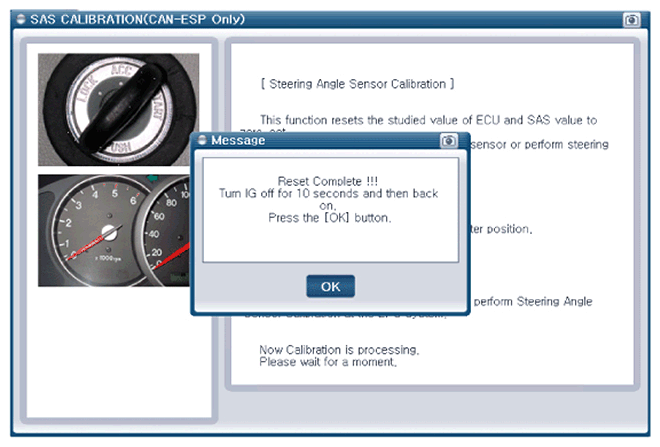

Fig 4: Screen Display - SAS Calibration (4 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA
