Components and Components Location: Components

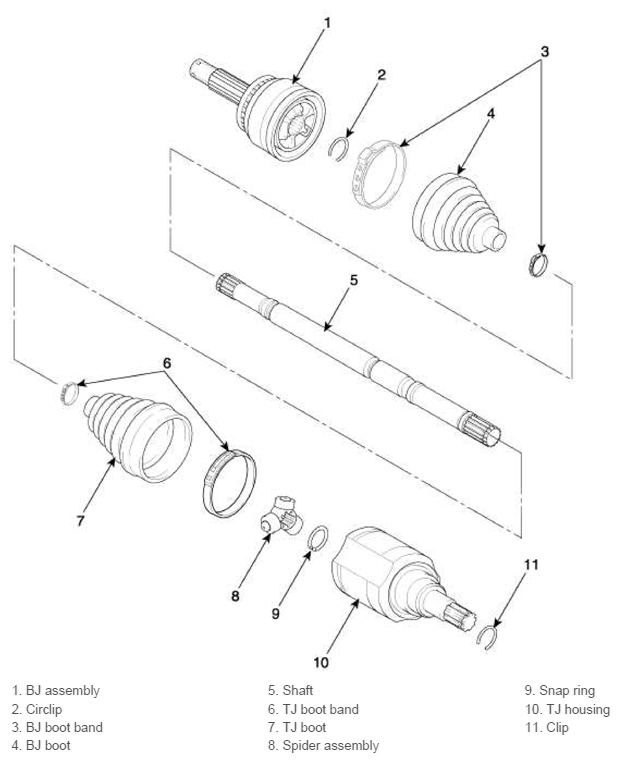

Fig 1: Locating BJ Boot Components
G11407236Courtesy of HYUNDAI MOTOR AMERICA
