Repair Procedures: Replacement

Remove the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
Remove the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ JOINT ")
Using a plier or flat-tipped (-) screwdriver, remove the BJ boot bands (A).

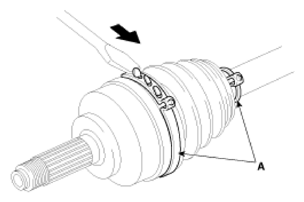

Fig 1: Removing BJ Boot Bands Using Plier Or Flat-Tipped (-) Screwdriver
Courtesy of HYUNDAI MOTOR AMERICA
Remove the BJ boot.
Install the BJ boot with new ones.
Using the SST(09495-3K000), secure the BJ boot bands.
Using the SST, secure the TJ boot bands.

[Ear type]

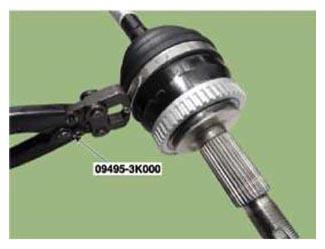

Fig 2: Securing TJ Boot Bands Using SST (Ear Type)
Courtesy of HYUNDAI MOTOR AMERICA

[Hook type]

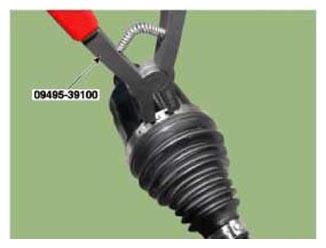

Fig 3: Securing TJ Boot Bands Using SST (Hook Type)
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Boot bands must be replaced with new ones whenever they are replaced.
Install in the reverse order of removal.
NOTE:
- Do not disassemble the BJ assembly.
- Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
- The boot band should be replaced with a new one.
Check the front alignment.
(Refer to Suspension System - "ALIGNMENT ")
