Home › Genesis › 2017 › G90 5.0 Ultimate, AWD › Repair and Diagnosis › Drivelines & Axles › Axle Shafts › Front Driveshaft Assembly › TJ Joint › Components and Components Location › Components

Components and Components Location: Components

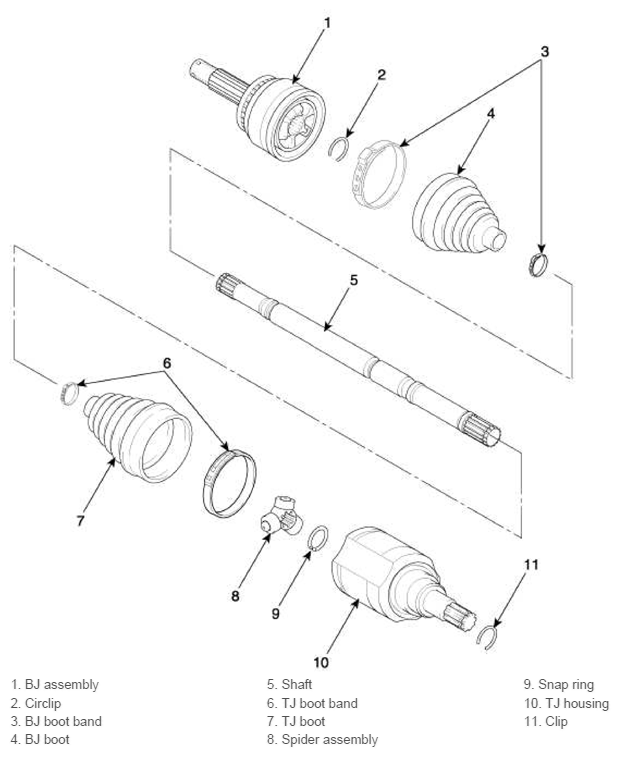

Fig 1: Locating TJ Joint Components
G11407223Courtesy of HYUNDAI MOTOR AMERICA
