Repair Procedures: Removal

  1. Disconnect the battery negative (-) cable.
  2. Disconnect the battery sensor connector (A).
  3. Remove the battery negative (-) cable after removing the bolts (B).

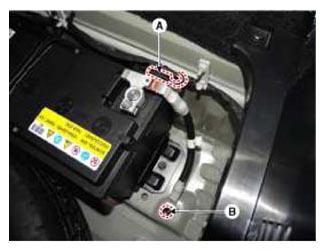

Fig 1: Locating Battery Negative (-) Cable And Bolts
G11403883Courtesy of HYUNDAI MOTOR AMERICA
