Components and Components Location: Components

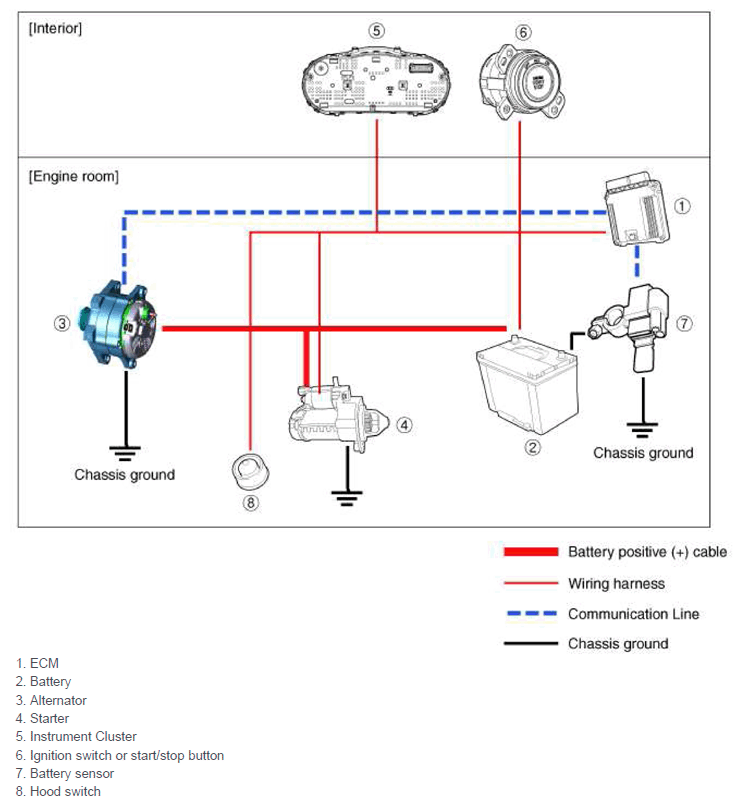

Fig 1: Charging System - 5.0L Communication Diagram
G11403849Courtesy of HYUNDAI MOTOR AMERICA
