G90 5.0 Ultimate, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 5.0L
›
CVVT Oil Control Valve (OCV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

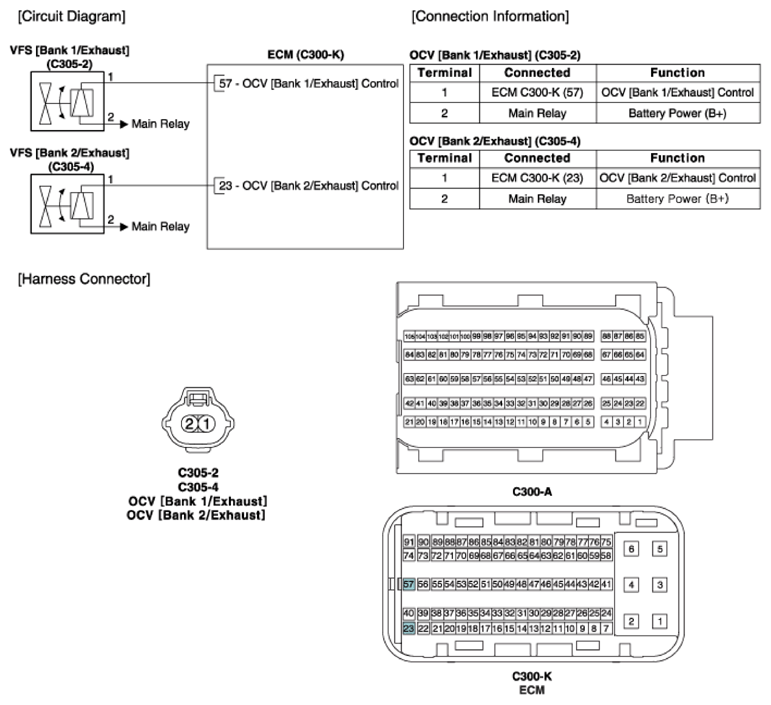

Fig 1: CVVT Oil Control Valve (Bank 1, 2/Exhaust) Circuit Diagram
