Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the crankshaft position sensor connector (A).

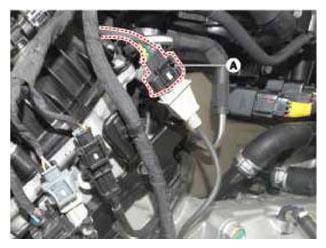

    Fig 1: Locating Crankshaft Position Sensor Connector
    G11404360Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the sensor (B) after removing the installation bolt (A).

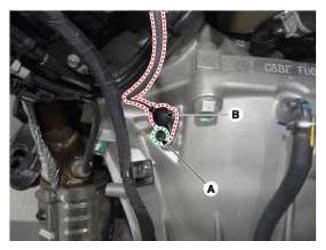

    Fig 2: Locating Crankshaft Position Sensor And Installation Bolt
    G11404361Courtesy of HYUNDAI MOTOR AMERICA
