Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the negative (-) battery terminal.
Remove the rear-left wheel & tire and wheel house cover.
Remove the fuel filler cap after opening the fuel filler door.
Disconnect the fuel filler hose (A).

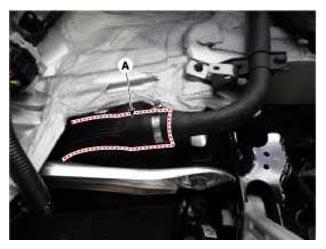

Fig 1: Locating Fuel Filler Hose
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the vent hose quick-connector (A).

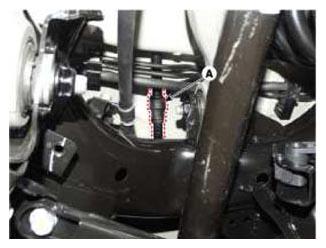

Fig 2: Locating Vent Hose Quick-Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the mounting nuts (A), and then remove the fill-neck assembly.

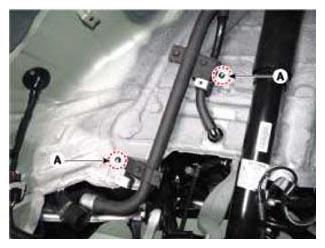

Fig 3: Locating Fill-Neck Assembly Mounting Nuts

Courtesy of HYUNDAI MOTOR AMERICA
