Repair Procedures: Installation

WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.

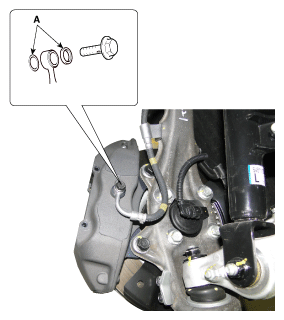

NOTE: Use a new washer (A) whenever installing.

Courtesy of
After installation, bleed the brake system.
(Refer to Brake System - "BRAKE SYSTEM BLEEDING ")
Check for brake fluid leaks.
