Components and Components Location: Components

WARNING: This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

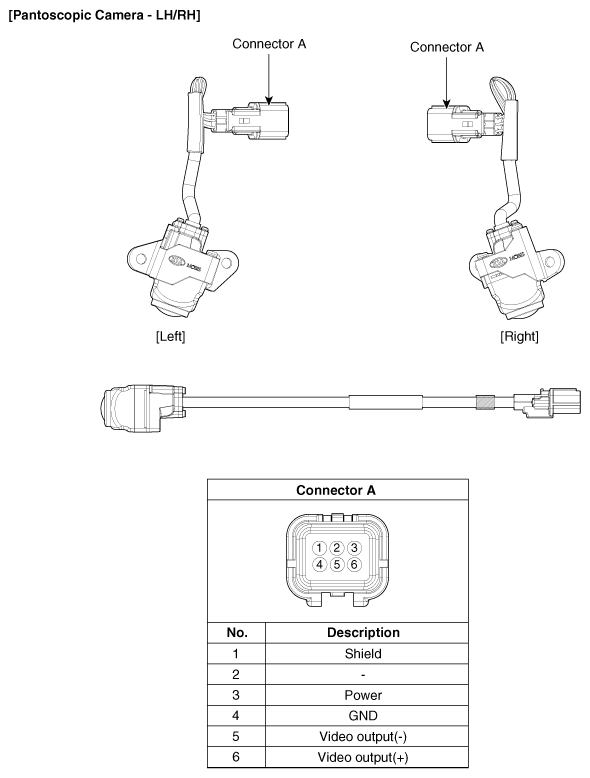

Fig 1: Pantoscopic Camera Components Location (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

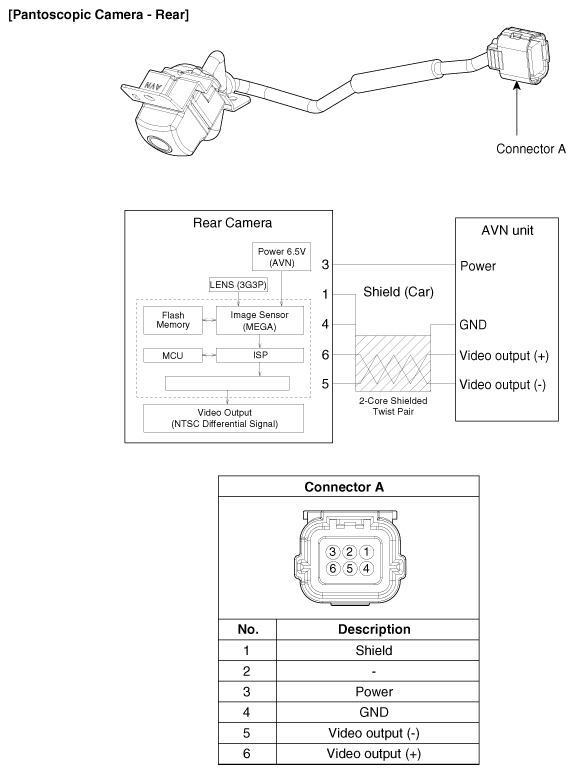

Fig 2: Pantoscopic Camera Components Location (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

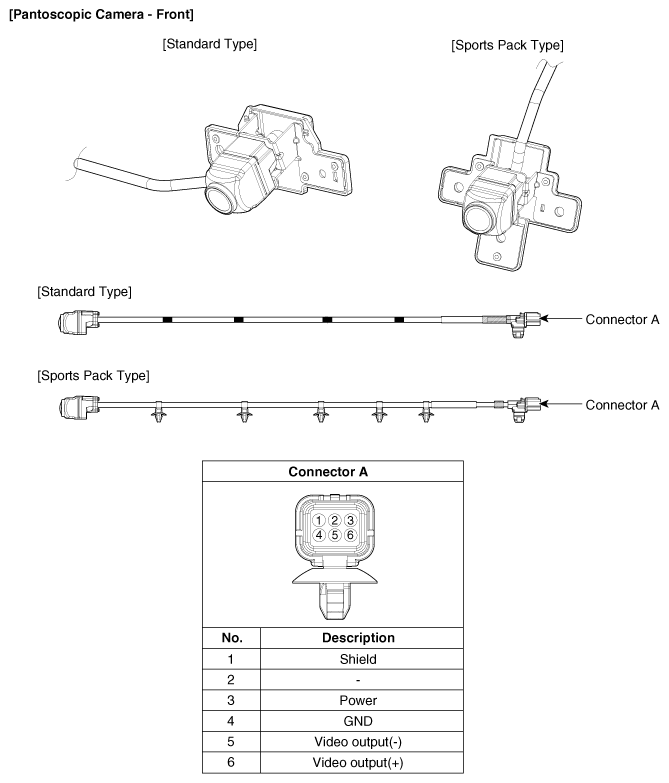

Fig 3: Pantoscopic Camera Components Location (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
