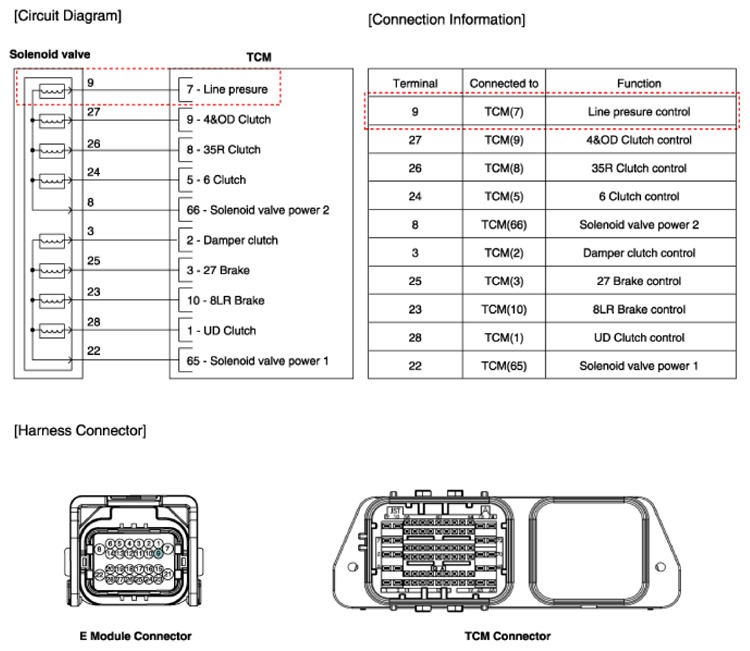

Home › Genesis › 2017 › G90 5.0 Ultimate, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission Control System › Line Pressure Control Solenoid Valve (Line_VFS) › Schematic Diagrams › Circuit Diagram
