Rear Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

  3. Remove the rear power window motor after loosening the mounting bolts and disconnecting the connector.

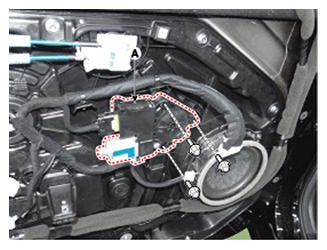

Fig 1: Removing Rear Power Window Motor With Mounting Bolts
G11406312Courtesy of HYUNDAI MOTOR AMERICA
