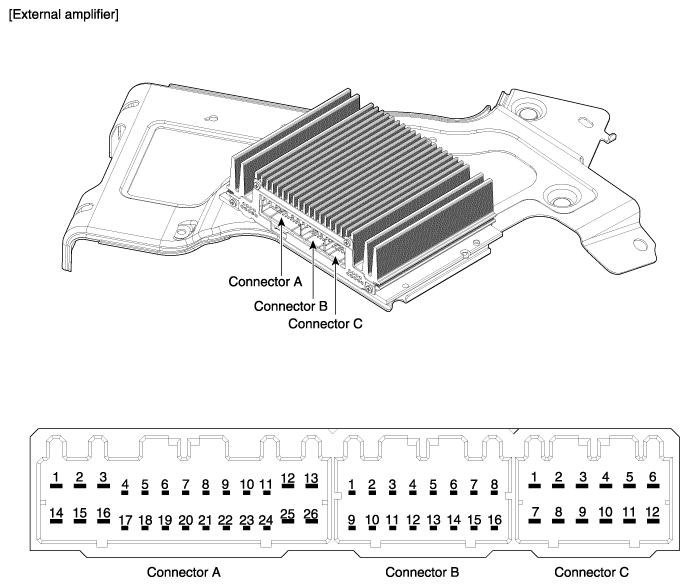

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

No	Connector A	No	Connector B	No	Connector C
1	B (+)	1	-	1	Right side low (+)
2	B (+)	2	-	2	Left side low (+)
3	B (+)	3	-	3	Right front mid-range/tweeter (+)
4	-	4	-	4	Left front mid-range/tweeter (+)
5	Multi-Media - CAN (high)	5	-	5	Right front door (+)
6	Multi-Media - CAN (low)	6	-	6	Left front door (+)
7	ACC	7	-	7	Right side low (-)
8	-	8	-	8	Left side low (-)
9	-	9	-	9	Right front mid-range/tweeter (-)
10	-	10	-	10	Left front mid-range/tweeter (-)
11	NAVI sound (+)	11	-	11	Right front door (-)
12	Sub woofer 2 (+)	12	-	12	Left front door (-)
13	Sub woofer 1 (+)	13	-	13
14	GND	14	-	14
15	GND	15	-	15
16	GND	16	-	16
17	-	17		17
18	SPDIF (+)	18		18
19	SPDIF (-)	19		19
20	SPDIF GND (shield)	20		20
21	-	21		21
22	-	22		22
23	-	23
24	NAVI sound (-)	24
25	Sub woofer 2 (-)	25
26	Sub woofer 1 (-)	26
