Description And Operation: Description

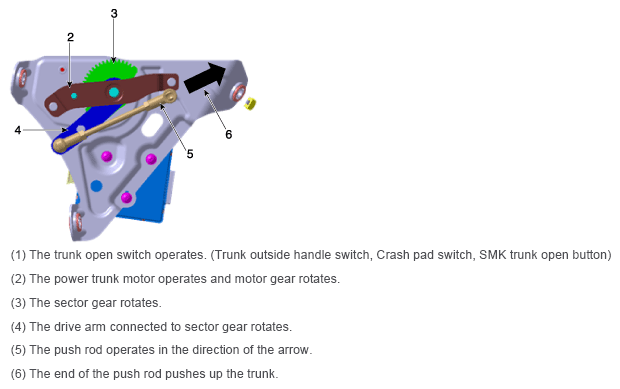

  1. Power trunk drive unit (Trunk open)
    G12658911Courtesy of HYUNDAI MOTOR AMERICA

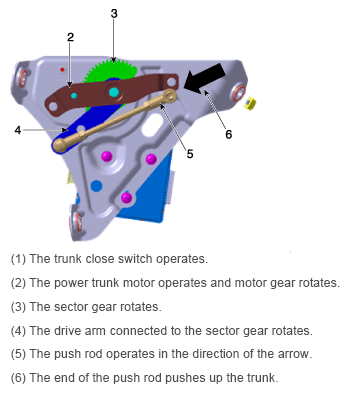

  2. Power trunk drive unit (Trunk close)
    G12658912Courtesy of HYUNDAI MOTOR AMERICA
