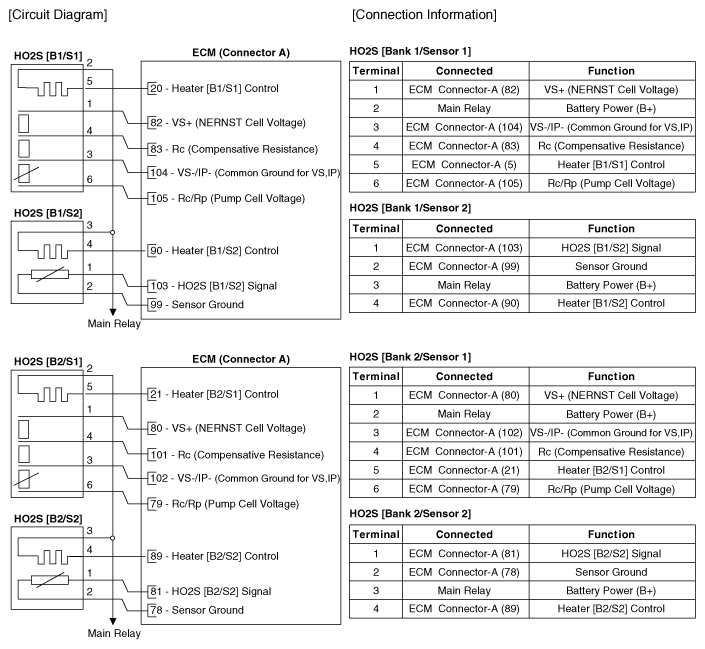

Home › Genesis › 2018 › G80 3.8, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.8L › Heated Oxygen Sensor (HO2S) › Schematic Diagrams › Circuit Diagram › Notes
