Check The Signal Waveform Of HO2S

  1. IG "OFF". Connect HO2S connector.
  2. Connect probe to HO2S to measure signal waveform using oscilloscope function. Start engine.
  3. After warming-up, monitor signal waveform of HO2S with GDS.

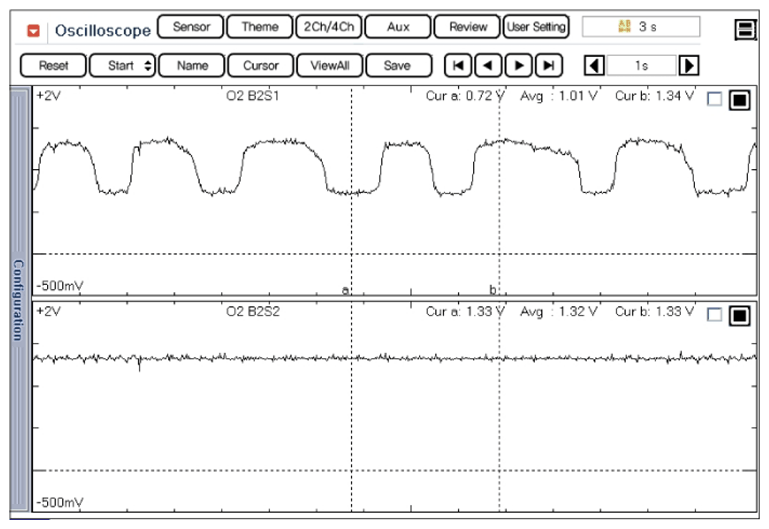

    G12653859Courtesy of HYUNDAI MOTOR AMERICA

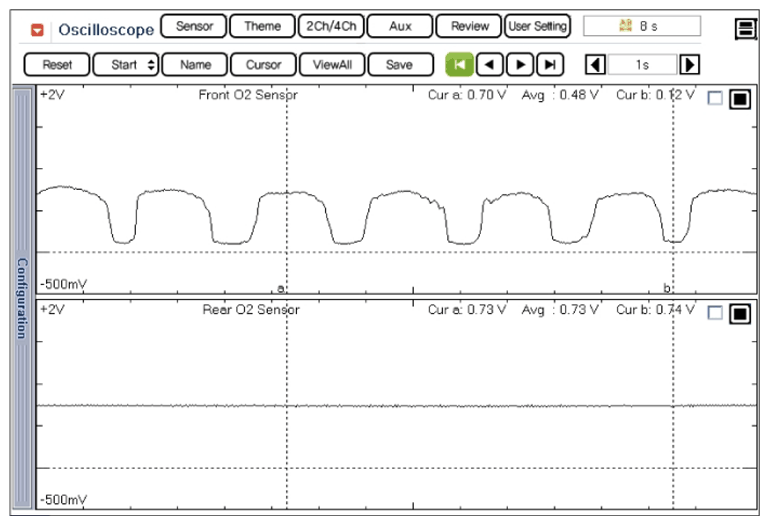

    G12653860Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the sensor switching properly?

    YES

    • Substitute with a known - good ECM (PCM) and check for proper operation. If the problem is corrected, replace ECM (PCM) and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Substitute with a known - good HO2S and check for proper operation. If the problem is corrected, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
