Components And Components Location: Components

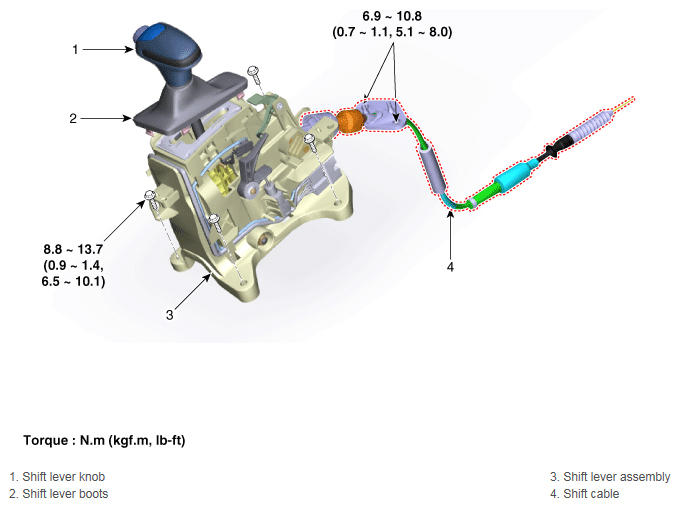

Fig 1: Locating Shift Cable Components With Torque Specification
G12658137Courtesy of HYUNDAI MOTOR AMERICA
