Components And Components Location: Components

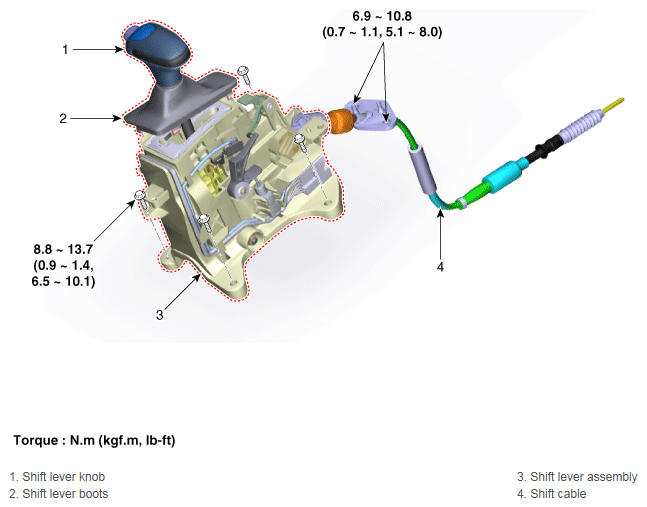

Fig 1: Locating Shift Lever Components With Torque Specification
G12658132Courtesy of HYUNDAI MOTOR AMERICA
