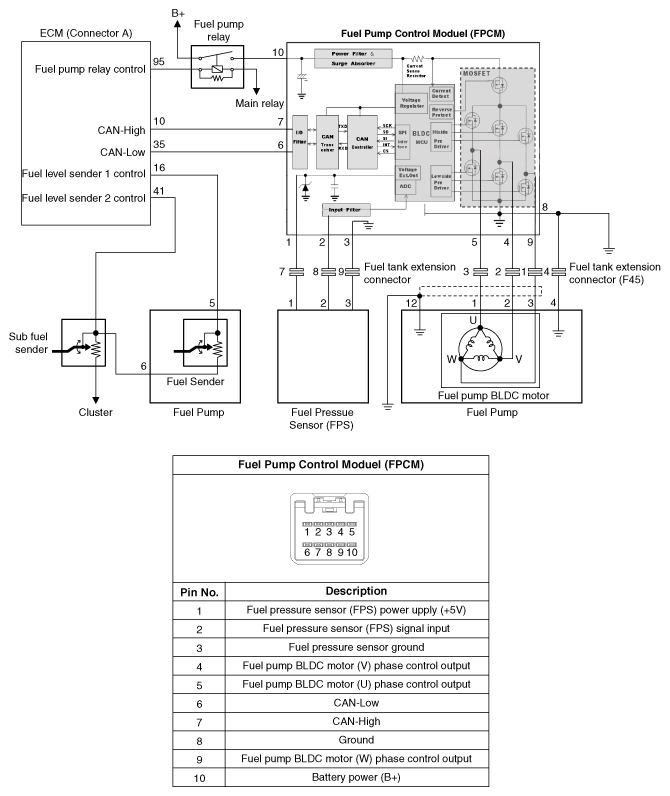

Home › Genesis › 2018 › G80 5.0 Ultimate, AWD › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System - 5.0L › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
