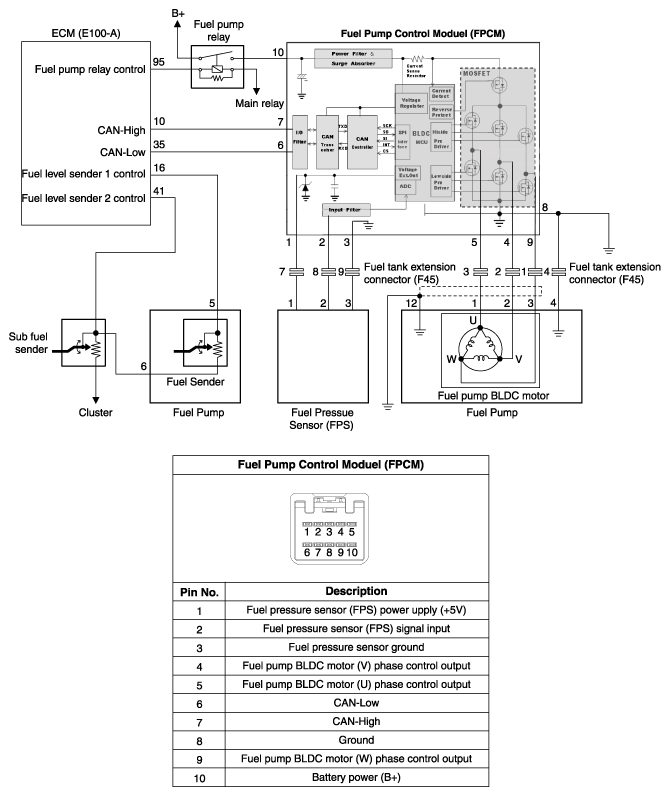

Home › Genesis › 2018 › G90 3.3T Premium, AWD › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System - 3.3L › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
