Steering Limit Position Setting Procedures

  1. Connect the diagnostic instrument to the self-diagnostic connector (16-pin) beneath the crash pad on the side of the driver's seat, and then turn on the ignition to activate the diagnostic instrument.
  2. In the GDS Vehicle Type Selection menu, select "Vehicle Type" and "SCM" System, and then opt for "OK."

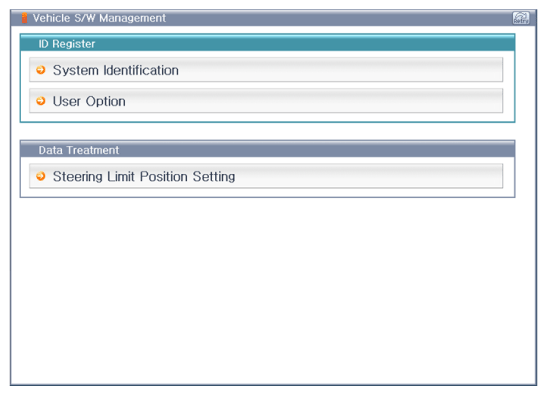

    G12717852Courtesy of HYUNDAI MOTOR AMERICA

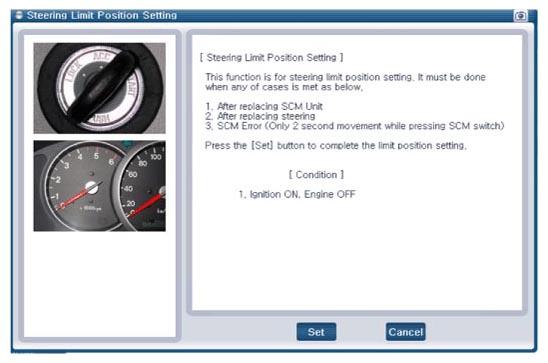

    G12717853Courtesy of HYUNDAI MOTOR AMERICA
