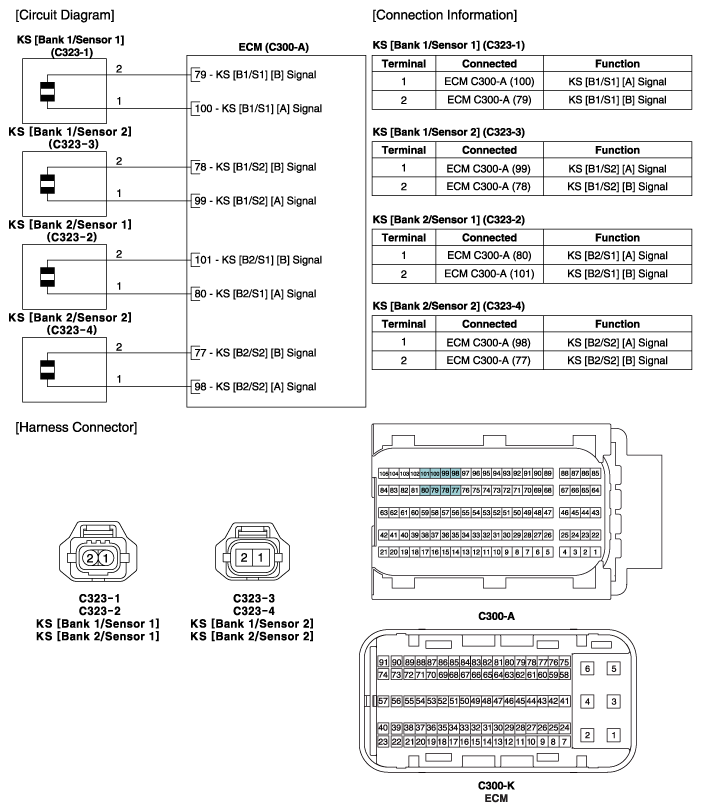

Home › Genesis › 2018 › G90 5.0 Ultimate, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 5.0L › Knock Sensor (KS) › Schematic Diagrams › Circuit Diagram
