Components & Components Location: Components

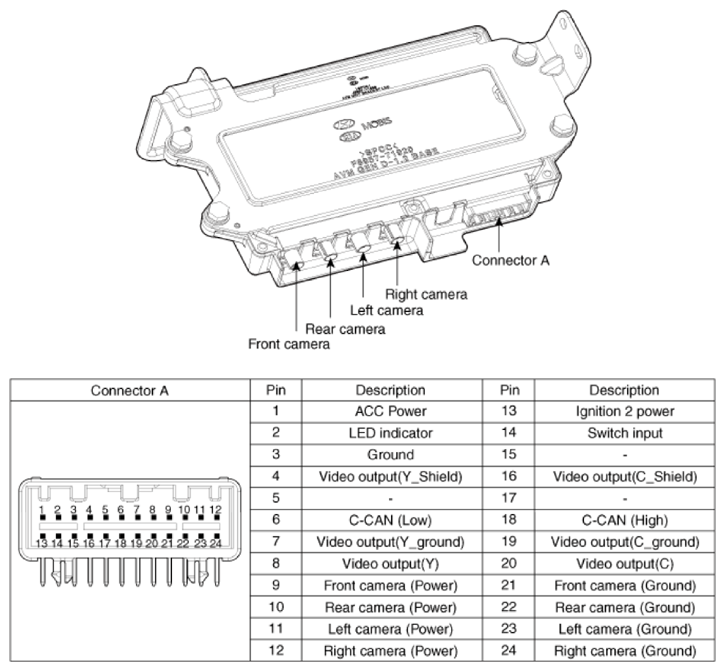

Fig 1: Surround View Monitoring Unit Connector End View And Terminal Description

Courtesy of HYUNDAI MOTOR AMERICAHYUNDAI MOTOR AMERICAHYUNDAI MOTOR AMERICAHYUNDAI MOTOR AMERICAHYUNDAI MOTOR AMERICA

Front camera (White)	No.	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Camera video input
	2	housing shield ground

Rear camera (Blue)	No.	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Camera video input
	2	housing shield ground

Left camera (Green)	No.	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Camera video input
	2	housing shield ground

Right camera (Brown)	No.	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Camera video input
	2	housing shield ground
